4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI

Product Categories
Aison Technology (HK) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI

Brand Name : AISON

Model Number : DSI430-V1.0I

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days for samples;3-4 weeks for mass production

Packaging Details : Blister Package/Carton

Item : 4.3 inch DSI TFT Touch Display

Resolution : 800x480

Outline dimension : 105.5x67.2x11.4mm

Active area : 154.08x85.92mm

Interface : DSI&USB

Viewing angle : 85/85/85/85

Brightness : 450cd/m2

Display mode : Normally Black

Operating temperatures : -20 to 70 degree

Storage temperatures : -30 to 80 degree

Contact Now

4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI

General Description

DSI430-V1.0I is a 4.3 inch LCD display driver board; Supports DSI input; Support capacitive touch panel.

4.3inch IPS 800x480 MIPI DSI LCD Module for Raspberry PI 3B/ 3B+ / 4B

1. Connect to Raspberry PI MIPI DSI directly, no need other program.
2. IPS screen give you better viewing angle, perfect picture and display effect.
3. Capacitive touch panel allow you to touch with your fingers. 5 points multi touch. It's convenient for you to operate it.
4. Same size of LCD and PCB Board, Raspberry Pi positioning column M2.5 is reserved at the bottom5. The display don't need an external power supply , the MIPI-DSI connection to Raspberry Pi is enough.
6. The refresh frequency is around 60 Hz.
7. Could customize PCB and Cover glass .

General Spec

Model Name 4.3 inch DSI TFT Touch Display
Resolution 800x480
Model Size (W*H*T)mm 105.5x67.2x11.4mm
Display Area (W*H)mm 92.8x53.86mm
Interface MIPI DSI
Display Mode Normally Black,Transmissive
Viewing All/IPS
Brightness 400 cd/m2
Pin 15
Touch Captouch
Application For Raspberry Pi
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

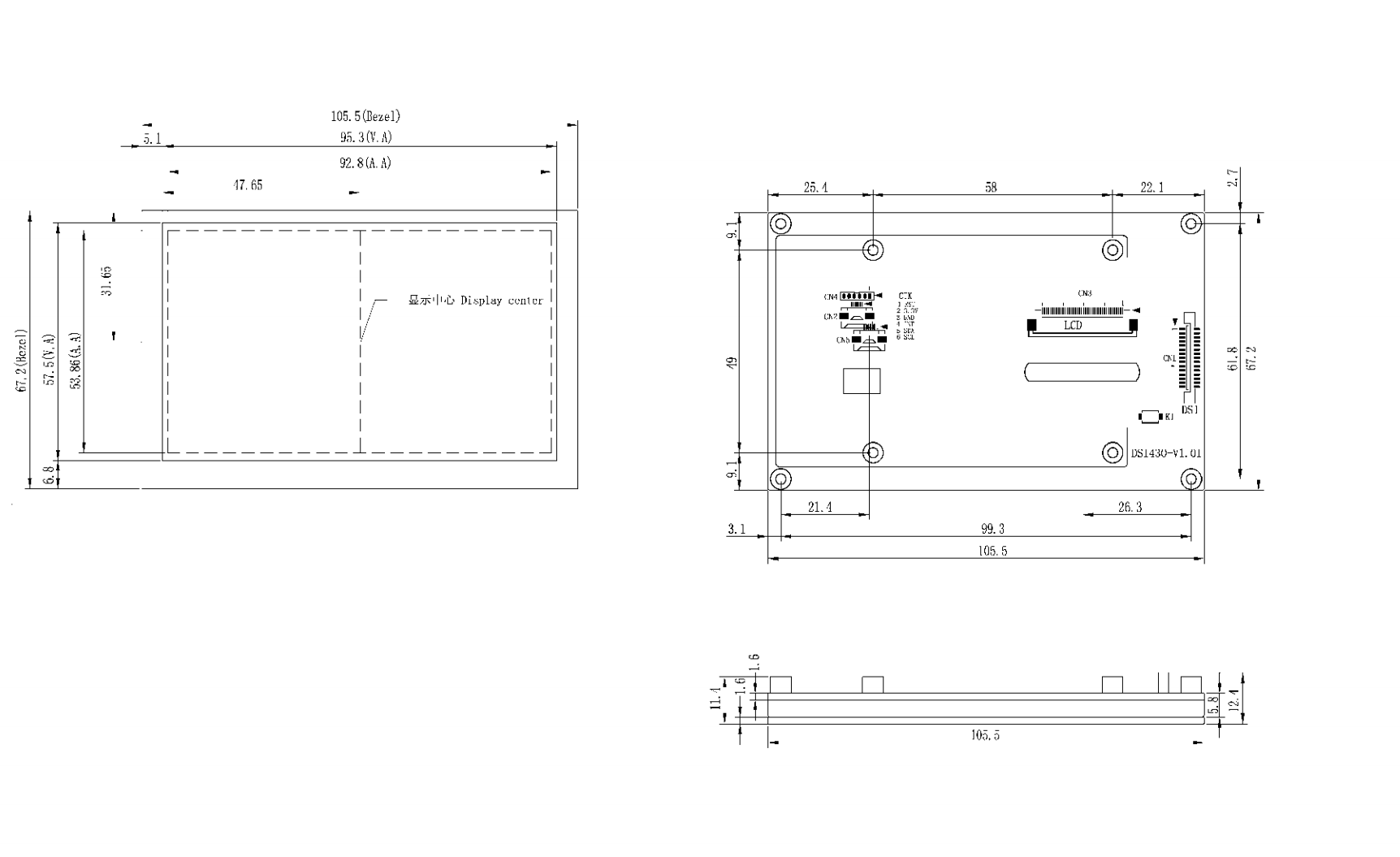

Drawing

4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI

Product Details

4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI

TFT Applications

Product introduction
IPS full viewing angle display○800X480 resolution, up to 178° full viewing angle panel
Use as a Raspberry Pi display
○Support Raspberry Pi back-to-back direct installation and locking
○Support mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.
○When used with Raspberry Pi, it supports mainstream systems such as Raspbian, Kali linux, ubuntu, etc., supports touch control,
plug-and-play driver-free.
Use as a mini PC monitor
○It can be used as a computer secondary screen display (Windows supports 5-point touch), and can be used with other Mini PC
monitors to display


Product Tags:

4.3 inch TFT Touch Display



800x480 TFT Touch Display


Buy cheap 4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI product

4.3 inch 800x480 DSI TFT Touch Display For Raspberry PI Images
